Cosen

Building bandsaws in Hsinchu since 1976. We distribute fourteen models across three classes — NC automatic dual column, semi-automatic scissor, and mitre cutting. We market the NC series only: a machine that cannot tell you what it is consuming cannot help you cost a cut.

Automatic NC dual column

Two oversized ground columns hold the blade parallel to the work through the whole cut. Smart NC control with a touchscreen, 100 programmable jobs and a blade life timer — which is what makes consumption trackable rather than guessed at.

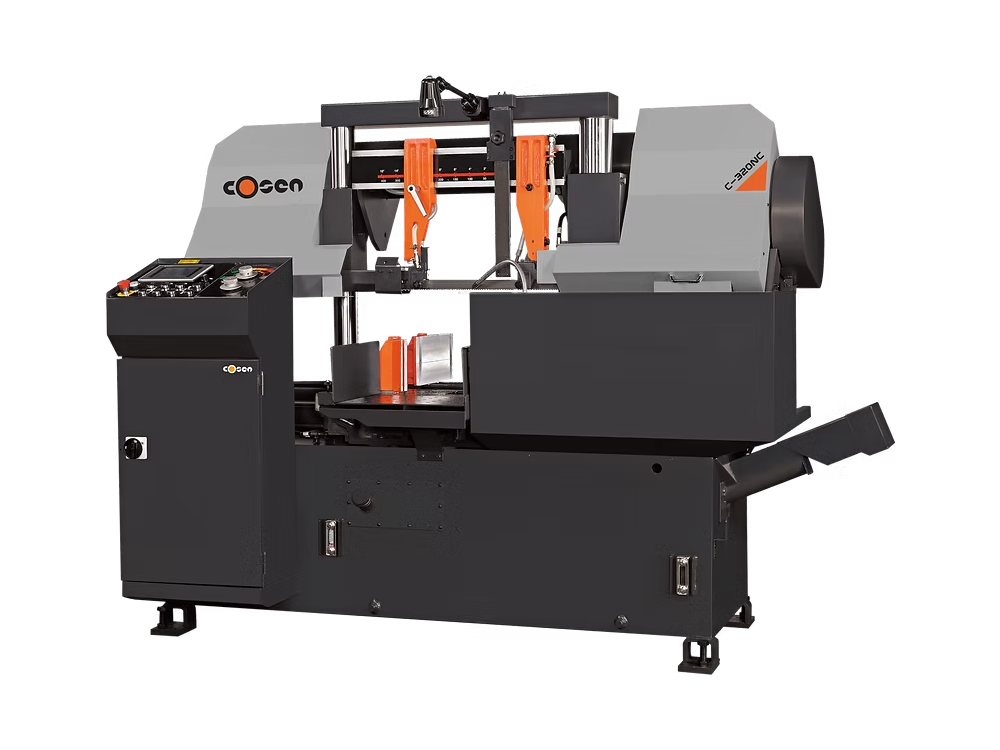

Cosen C-320NC
Full spec

C-320NC

Smallest machine in the NC automatic range. Smart NC control with 100-job memory, independent control panel and a blade life timer — the entry point to trackable blade consumption.

Round capacity320 mm
Rectangular H×W320 × 380 mm
Blade speed20–100 m/min
Blade L×W×T4240 × 34 × 1.1 mm
Blade motor3.7 kW
Weight1,705 kg
Floor space L×W×H2100 × 2100 × 1780 mm

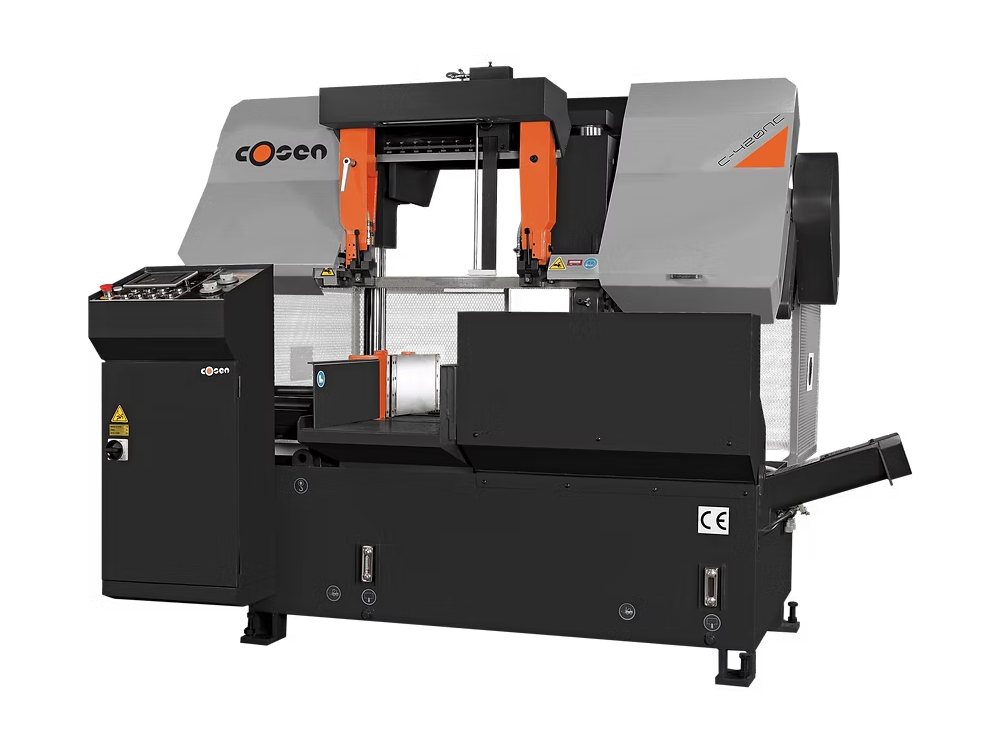

Cosen C-420NC
Full spec

C-420NC

Strengthened columns and structurally heavier beams over the 320, with an enlarged roller design for heavier stock.

Round capacity420 mm
Rectangular H×W420 × 420 mm
Blade speed15–100 m/min
Blade L×W×T4770 × 41 × 1.3 mm
Blade motor7.5 kW
Weight2,223 kg
Floor space L×W×H2580 × 2480 × 1800 mm

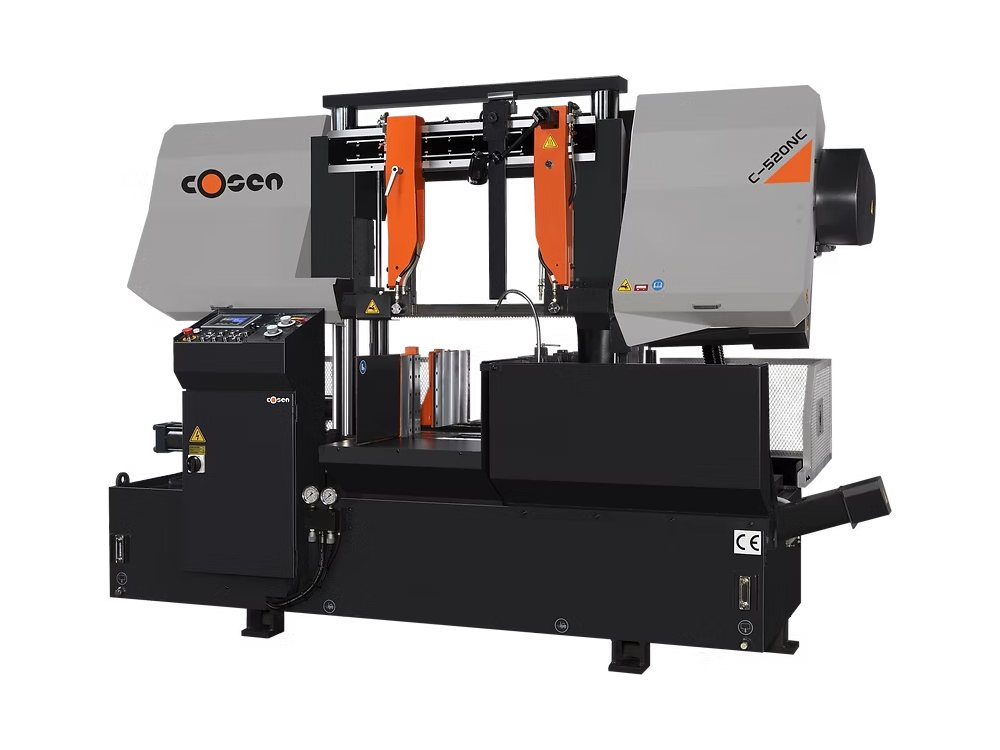

Cosen C-520NC
Full spec

C-520NC

54 mm blade on a 7.5 kW drive with an independent control panel. The class where production volume starts paying for the machine.

Round capacity520 mm
Rectangular H×W520 × 560 mm
Blade speed15–100 m/min
Blade L×W×T6350 × 54 × 1.3 / 1.6 mm
Blade motor7.5 kW
Weight3,924 kg
Floor space L×W×H3150 × 2210 × 2160 mm

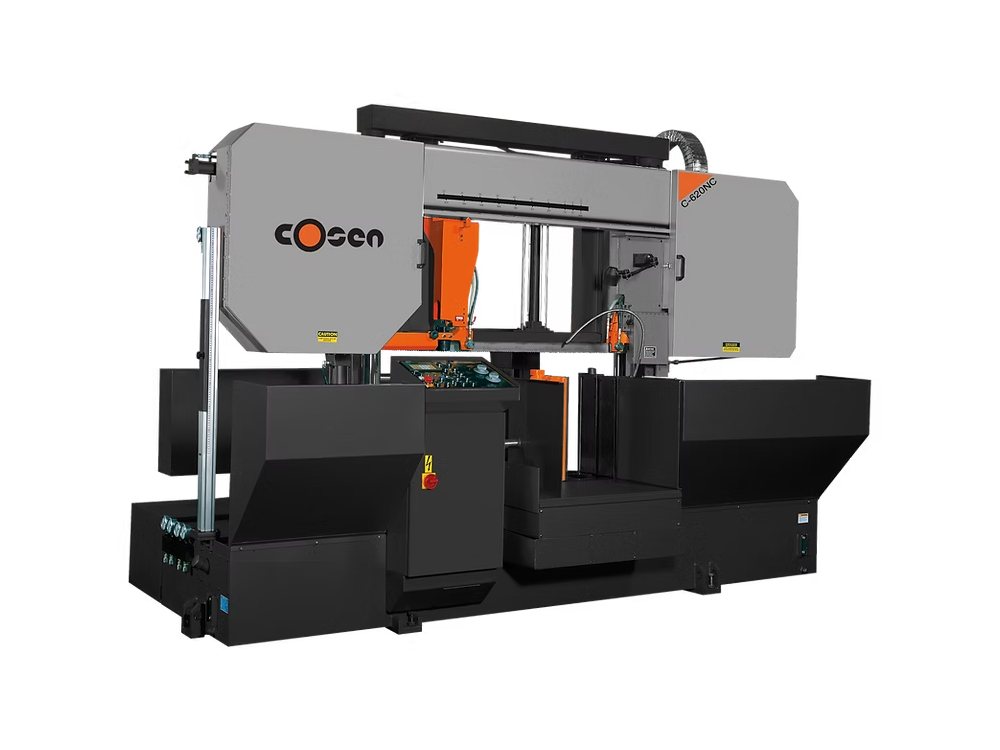

Cosen C-620NC
Full spec

C-620NC

Oversized precision-ground columns hold the blade steady under full cutting force. Largest NC automatic we distribute.

Round capacity620 mm
Rectangular H×W620 × 760 mm
Blade speed15–100 m/min
Blade L×W×T7190 × 54 × 1.3 / 1.6 mm
Blade motor7.5 kW
Weight4,990 kg
Floor space L×W×H4080 × 2090 × 2390 mm
Semi-automatic scissor

Pivot-arm machines from the workshop bench upward. Hydraulic down feed, manual or semi-automatic vise.

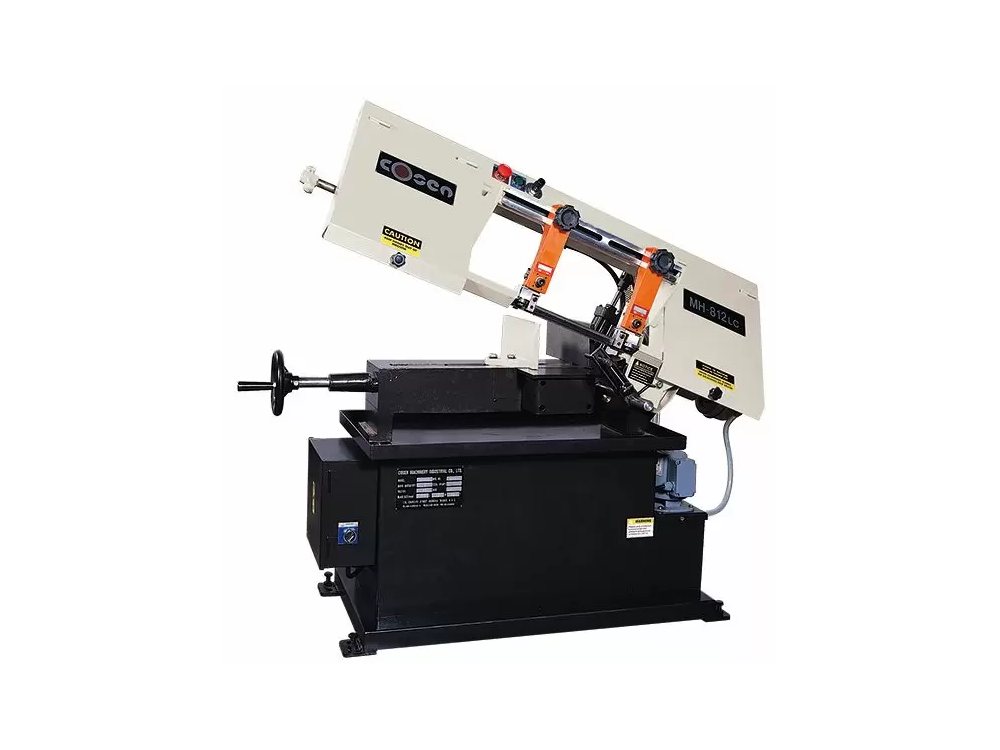

Cosen MH-812LC
Full spec

MH-812LC

Semi-automatic horizontal scissor saw with manual vise and hydraulic down feed. The workshop and maintenance-bay standard.

Round capacity200 mm
Rectangular H×W180 × 290 mm
Blade L×W×T2720 × 27 × 0.9 mm
Blade motor0.75 kW

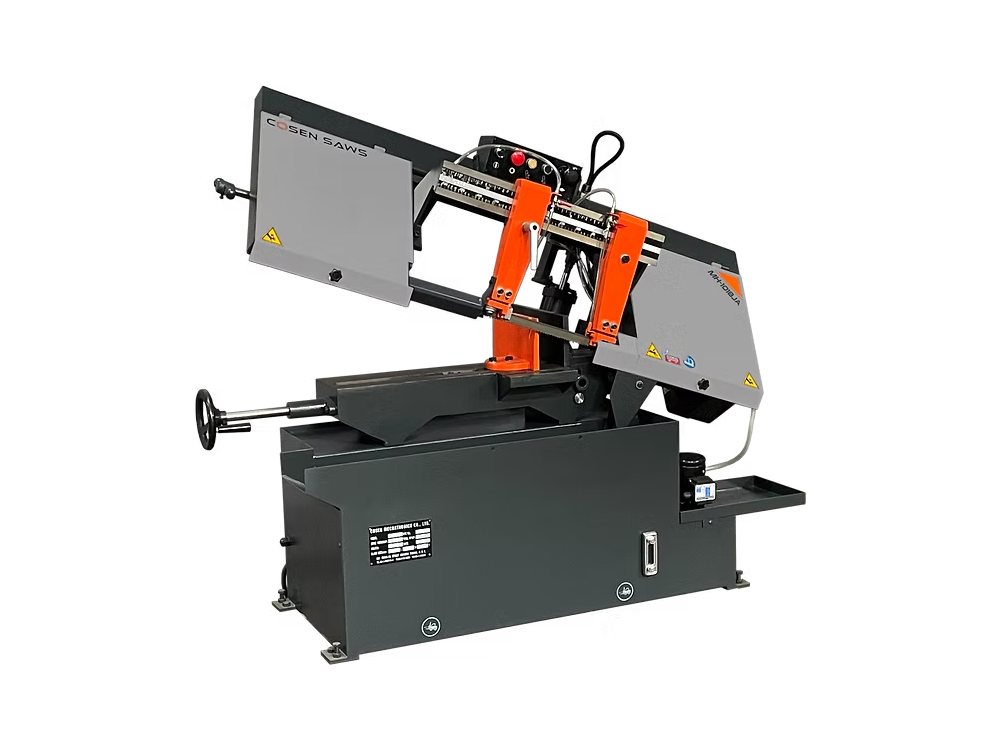

Cosen MH-1018JA
Full spec

MH-1018JA

Four-speed manual and semi-automatic scissor saw. The lightest machine in the Cosen range and the one that moves most easily.

Round capacity254 mm
Rectangular H×W229 × 419 mm
Blade speed23 · 37 · 58 · 93 m/min
Blade L×W×T3505 × 27 × 0.9 mm
Blade motor1.5 kW
Weight431 kg
Floor space L×W×H1730 × 740 × 1040 mm

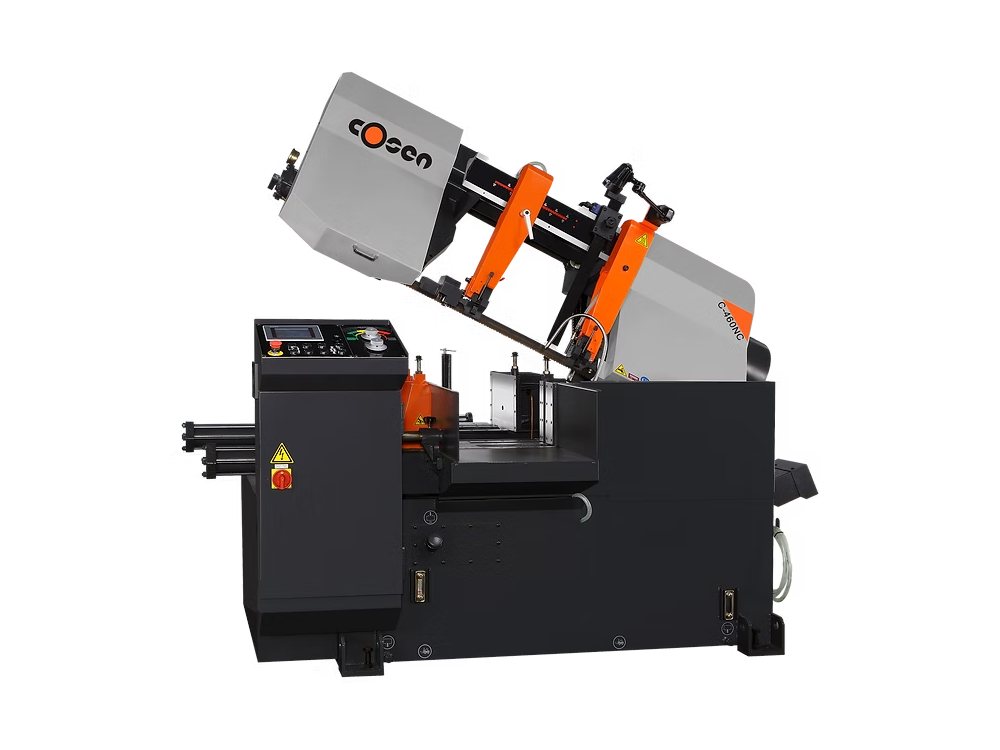

Cosen C-460NC
Full spec

C-460NC

NC-controlled pivot machine at 460 mm. Cosen classify this with the scissor range rather than the dual columns, despite the C designation.

Round capacity460 mm
Rectangular H×W460 × 460 mm
Blade speed15–100 m/min
Blade L×W×T4670 × 41 × 1.3 mm
Blade motor7.5 kW
Weight2,412 kg
Floor space L×W×H2490 × 2640 × 1570 mm

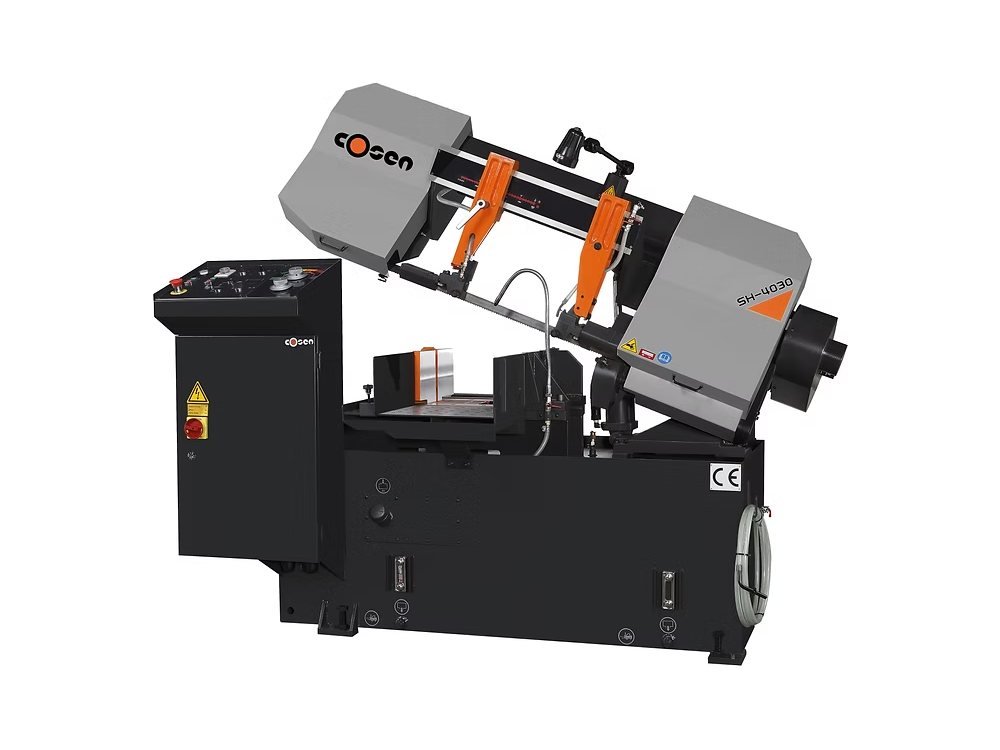

Cosen SH-4030
Full spec

SH-4030

Semi-automatic scissor at 300 × 400 mm. Hydraulic down feed with a semi-automatic vise, for shops cutting a mixed stock list daily.

Round capacity300 mm
Rectangular H×W300 × 400 mm
Blade speed21–91 m/min
Blade L×W×T3810 × 34 × 1.1 mm
Blade motor3.7 kW
Weight1,025 kg
Floor space L×W×H1070 × 1830 × 1350 mm

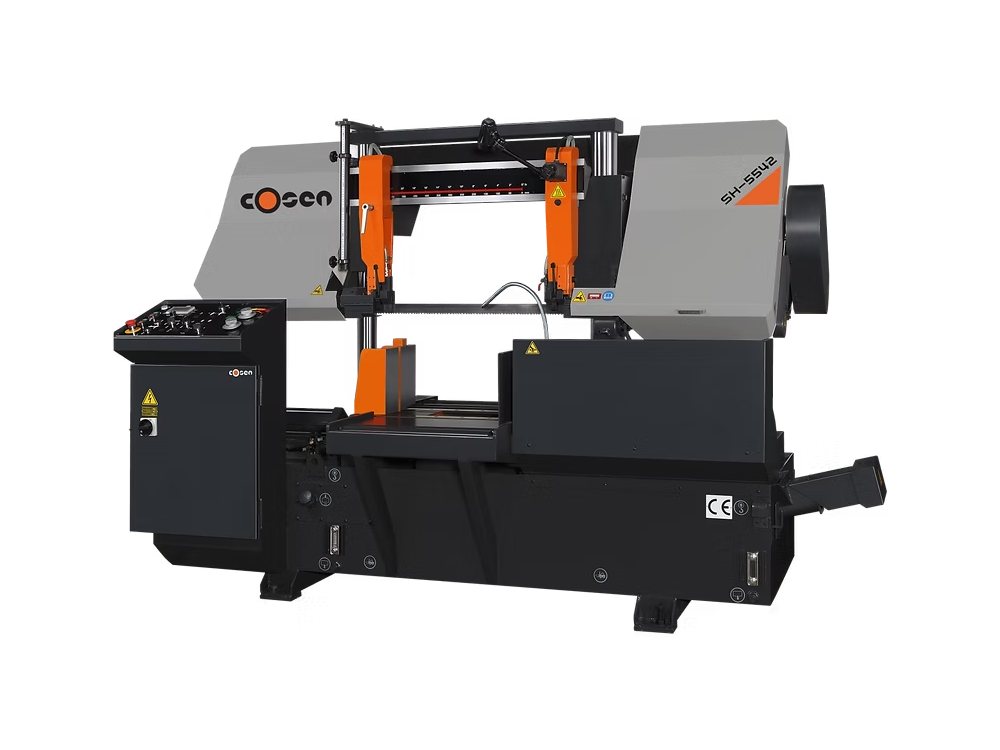

Cosen SH-5542
Full spec

SH-5542

41 mm blade on a 5.5 kW drive. Where section sizes outgrow the 4030 but the work does not justify an automatic.

Round capacity420 mm
Rectangular H×W420 × 550 mm
Blade speed15–100 m/min
Blade L×W×T5300 × 41 × 1.3 mm
Blade motor5.5 kW
Weight1,910 kg
Floor space L×W×H2760 × 1110 × 1840 mm

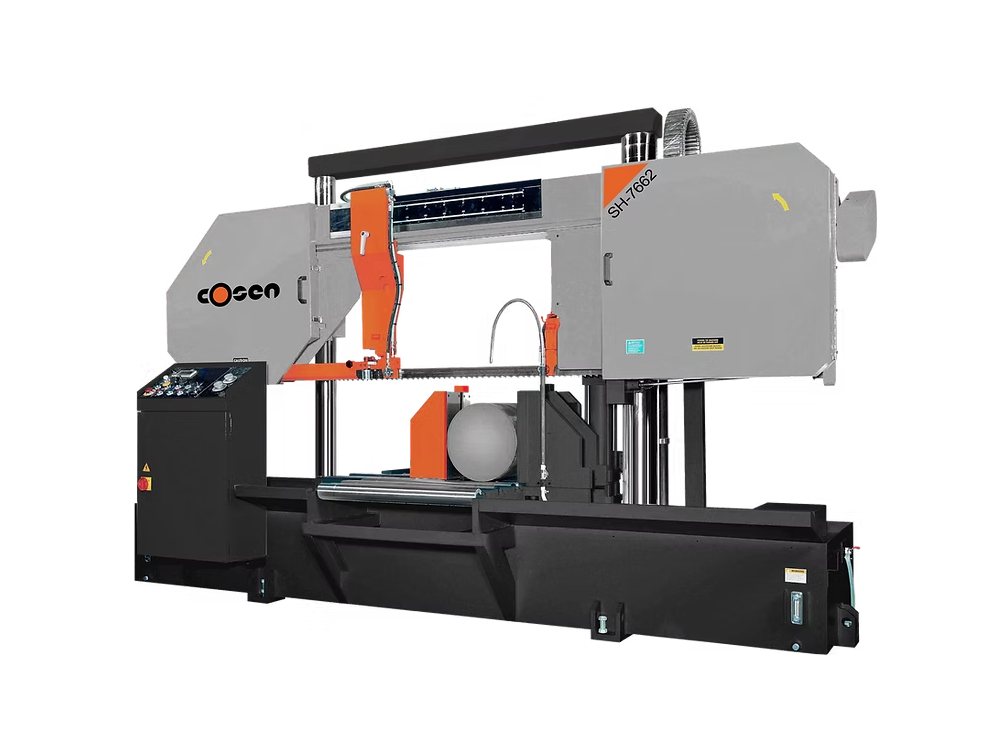

Cosen SH-7662
Full spec

SH-7662

Heavy semi-automatic at 620 × 760 mm on a 54 mm blade. Large solids and heavy section without moving to a dual column.

Round capacity620 mm
Rectangular H×W620 × 760 mm
Blade speed15–100 m/min
Blade L×W×T7200 × 54 × 1.6 mm
Blade motor7.5 kW
Weight3,473 kg
Floor space L×W×H1220 × 3940 × 2390 mm

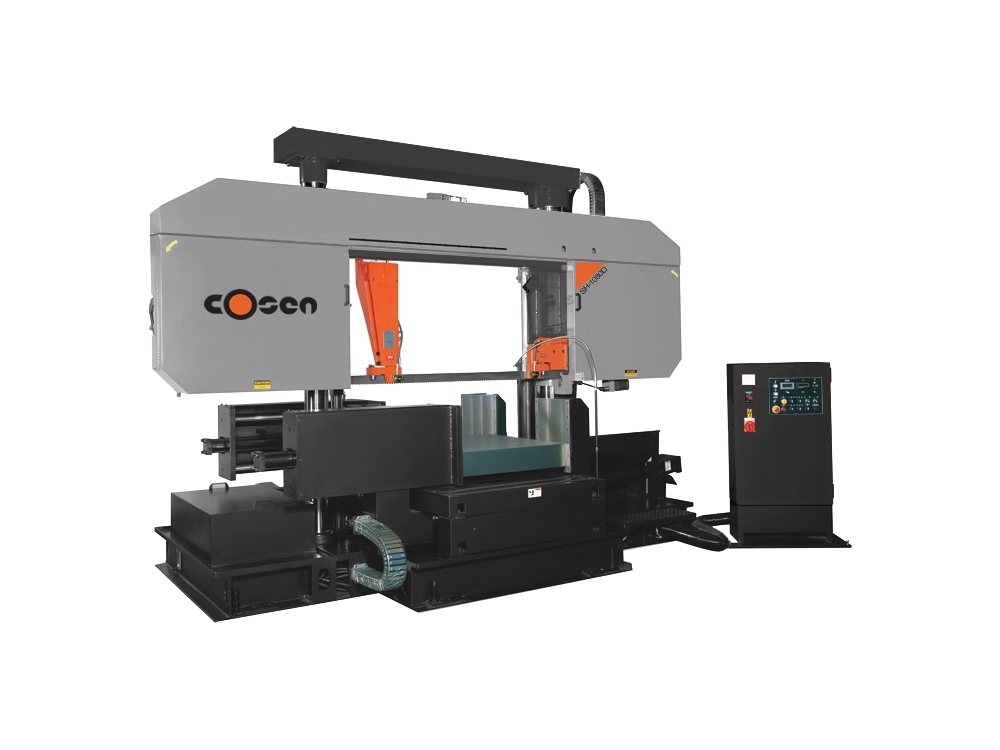

Cosen SH-1080D
Full spec

SH-1080D

Double-column semi-automatic at 800 × 1000 mm on a 67 mm blade. The largest straight-cutting machine we distribute.

Round capacity800 mm
Rectangular H×W800 × 1000 mm
Blade speed15–89 m/min
Blade L×W×T8800 × 67 × 1.6 mm
Blade motor11 kW
Weight9,979 kg
Floor space L×W×H2100 × 4110 × 2800 mm
Mitre cutting

Swivel-head machines cutting angles in solids, tube and structural section. Single mitre one direction, dual mitre both.

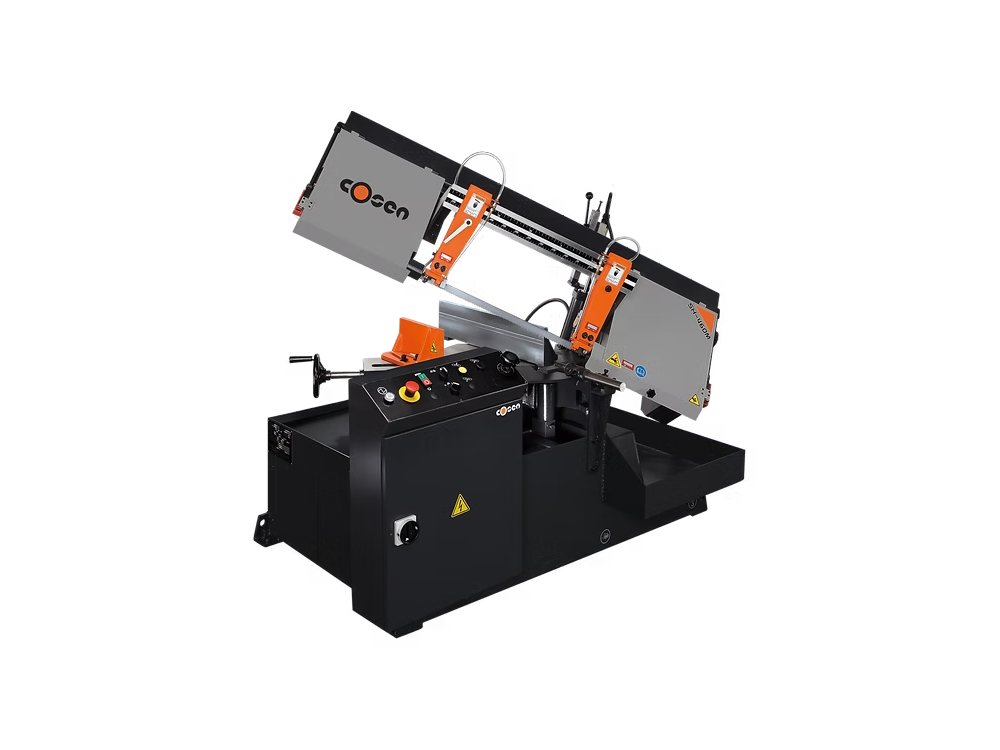

Cosen SH-460M
Full spec

SH-460M

Single-mitre swivel head cutting 0° to −60°. Four blade speeds, manual vise. The entry point to angle cutting.

CapacityRound · Rect
0°250 mm · 230 × 460 mm
−45°230 mm · 230 × 230 mm
−60°110 mm · 230 × 110 mm
Blade speed23 · 37 · 58 · 93 m/min
Blade L×W×T3505 × 27 × 0.9 mm
Blade motor1.5 kW
Weight616 kg
Floor space L×W×H1750 × 1100 × 1050 mm

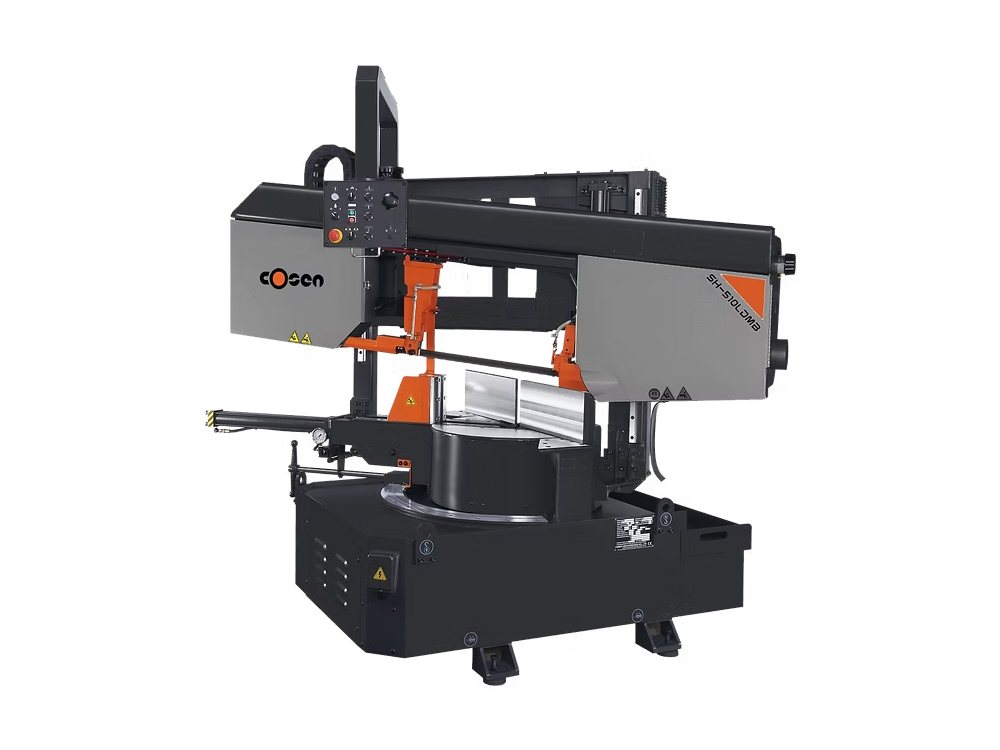

Cosen SH-510LDM
Full spec

SH-510LDM

Semi-automatic dual mitre, ±45° and ±60° both directions. Structural fabrication needs angles cut both ways, and this machine does it without repositioning the stock.

CapacityRound · Rect
0°320 mm · 330 × 510 mm
±45°320 mm · 330 × 320 mm
±60°200 mm · 330 × 200 mm
Blade speed25–100 m/min
Blade L×W×T4980 × 34 × 1.1 mm
Blade motor2.2 kW
Weight1,357 kg
Floor space L×W×H2490 × 1240 × 2040 mm

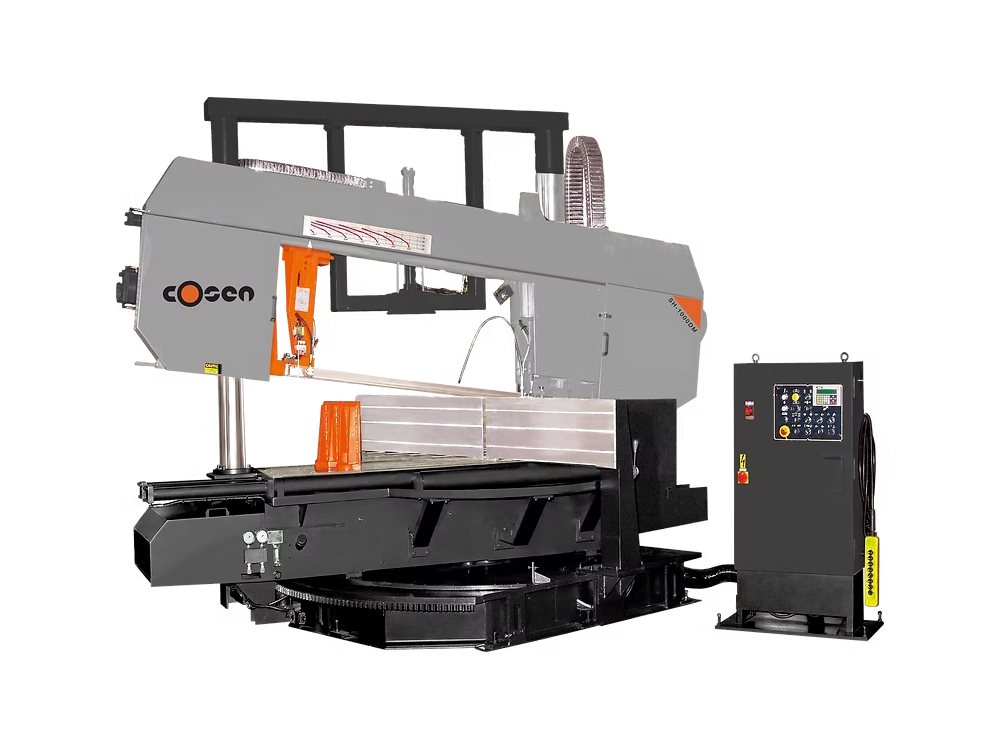

Cosen SH-1100LDM
Full spec

SH-1100LDM

Large-capacity mitre at 660 × 1120 mm on a 67 mm blade. Beam and heavy structural work — the biggest machine we distribute in any class.

CapacityRound · Rect
0°660 mm · 660 × 1120 mm
+45°660 mm · 660 × 700 mm
+60°400 mm · 660 × 400 mm
Blade speed15–120 m/min
Blade L×W×T10110 × 67 × 1.6 mm
Blade motor11 kW
Weight10,977 kg
Floor space L×W×H4850 × 4900 × 3400 mm

Specification

Tell us what you cut. We’ll tell you which machine.

Capacity is the easy part. What decides the machine is your section size, your material and how many cuts a day you actually make. Send us those three and we’ll come back with a model and a cost per cut, not a brochure.

Ask about a machine
NC ONLYWe market the Smart NC series. Not the AH series.
14 MODELS200 mm to 620 mm. Enough range, few enough to know properly.
BLADE TIMERNC machines log blade hours. That is where cost per cut comes from.
SERVICED HERECommissioned, maintained and repaired by us, in Singapore.
